FaceFocusVR

Parts & Files

Every part of the kit and the files behind it. Print a spare part, have the boards made, or just read the schematics.

Files updated Oct 4, 2026

Before you build

  • No warranty, no supportAnything you print or build yourself is your own project. There is no warranty on it, and self-built kits are not covered by support.
  • The lab results cover the original onlyThe EN 62471 test reports and every safety statement apply to unmodified parts as supplied. Change the geometry, the material or the LEDs and none of it carries over.
  • Mind the licenseCERN-OHL-S v2: publish your changes under the same license, label them "Based on FaceFocusVR", and do not use the name for your own product.
Read the full Licensing terms

Mechanics / 3D printing

All housings are resin printed. Parts that have to pass infrared light cannot be printed on an FDM printer.

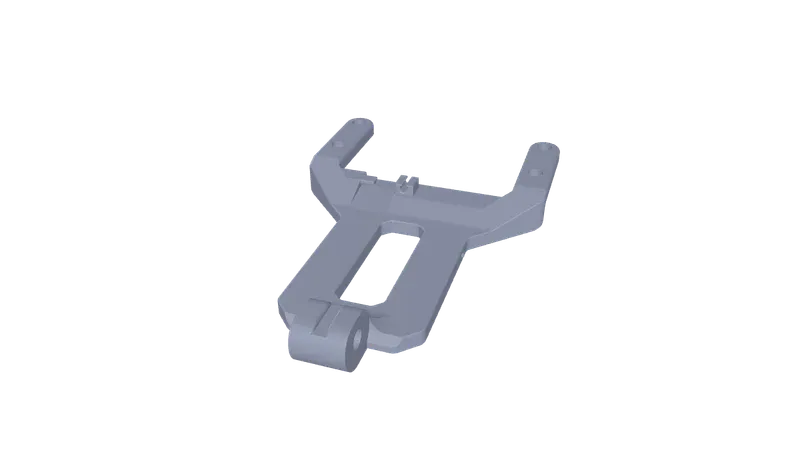

Face Camera Arm

STLSTEP

I print these in ANYCUBIC ABS-Like Resin 3.0, Smoky Black.

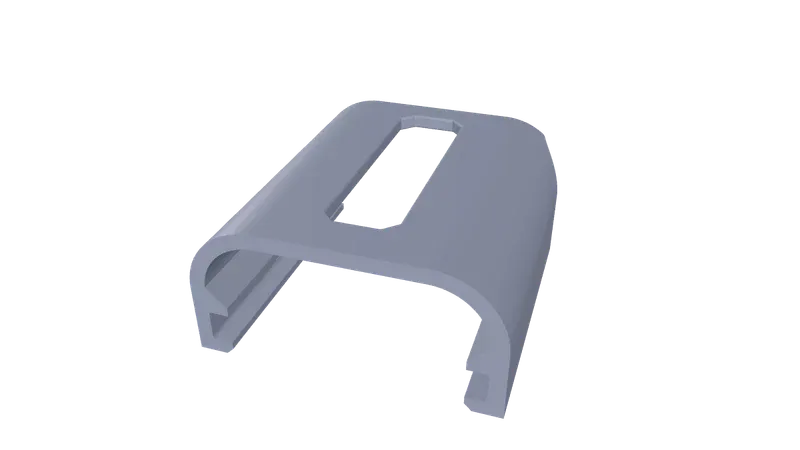

Arm Cover

STLSTEP

I print these in ANYCUBIC ABS-Like Resin 3.0, Smoky Black.

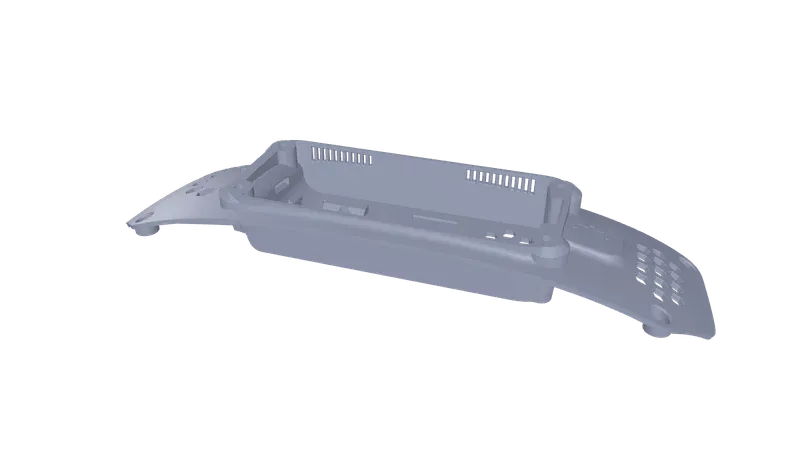

DEV Frunk 2.0

STLSTEP

I print these in ANYCUBIC ABS-Like Resin 3.0, Smoky Black.

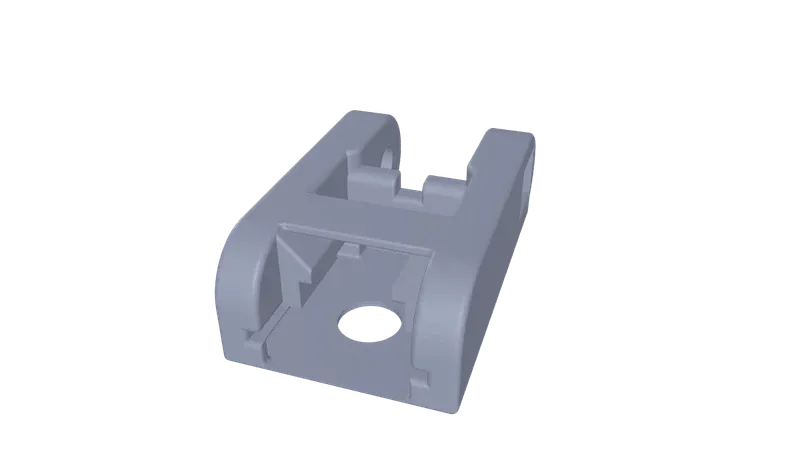

Face Module

STLSTEP

Resin only (SLA/MSLA), not FDM. I print these in ANYCUBIC ABS-Like Resin 3.0, Smoky Black.

Best printed as it is, because geometry and wall thickness change how bright the IR illumination gets.

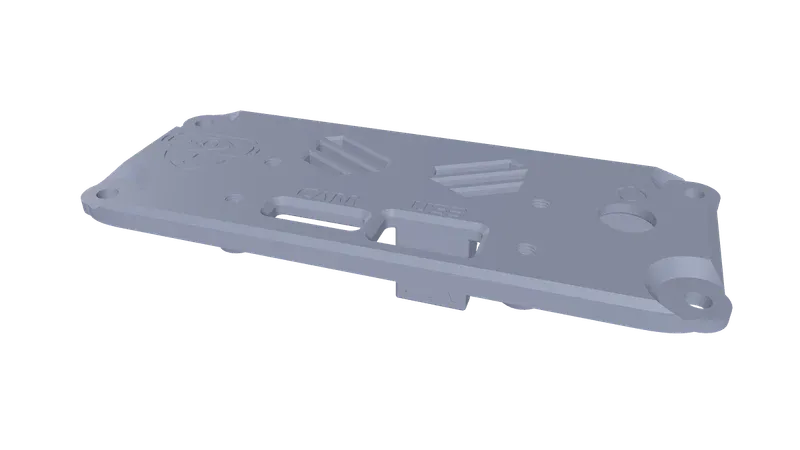

Face Plate

STLSTEP
STLSTEP

I print these in ANYCUBIC ABS-Like Resin 3.0, Smoky Black.

Eye Module

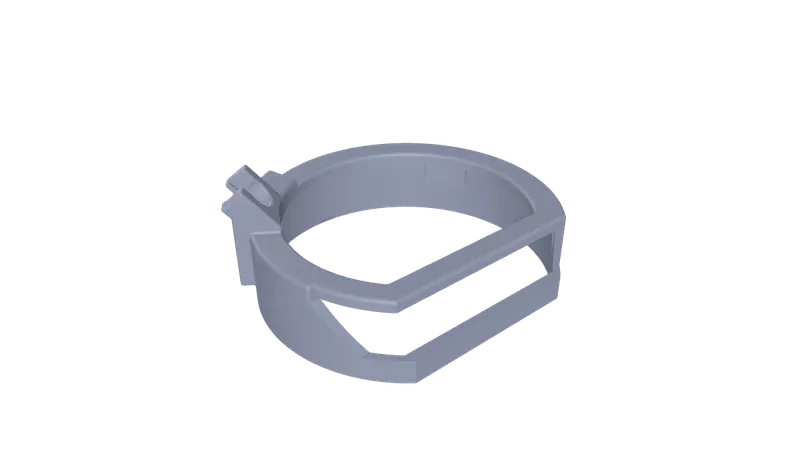

Standard lenses
STLSTEP
STLSTEP

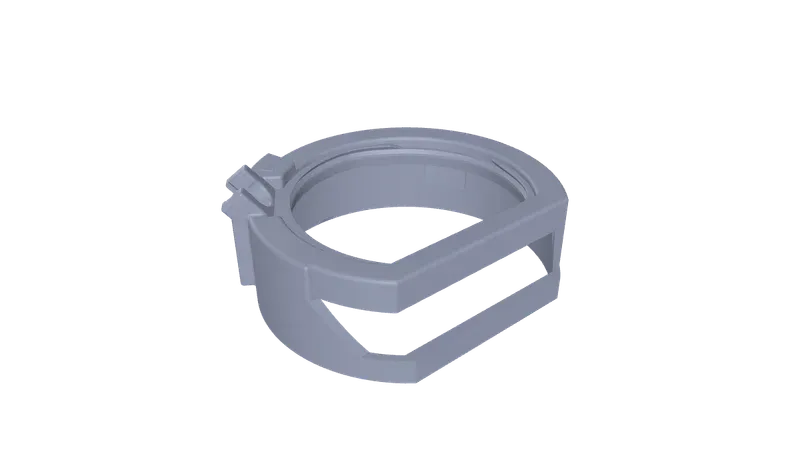

VROptician inserts
STLSTEP
STLSTEP
STLSTEP

Resin only (SLA/MSLA), not FDM. I print these in SUNLU ABS Like Resin Black.

Do not change the geometry or wall thickness where the infrared light passes through. Safety information

Still to come

The 3D printed parts are online. The rest follows as soon as I get to it:

  • The full parts list with manufacturer part numbers
  • Manufacturing data for the boards, Gerber and BOM and pick & place
  • The schematics as PDF
  • The firmware
